- Remotely power PoE Device Thru CAT.5,6,7 Cable up to 328 feet(100 meters)
- Power over Ethernet with 48V Power Supply, Compact Size Convenient US Wall Plug Design
- Autoranging Switching Input 100-240VDC, Output: 48V 24W passive PoE Output
- Safety: Short Circuit, Over Current and Over Voltage Protection
- Compatible with most 10/100Mbps IP camera, IP phone, Wireless IP point and other PoE devices.
Applications:
IP Phone
Wireless Access point and client devices
Security Camera Systems
Features:
1. Used for 10/100Mbps networking
2. Save you money by using an existing Ethernet line to deliver data and power.

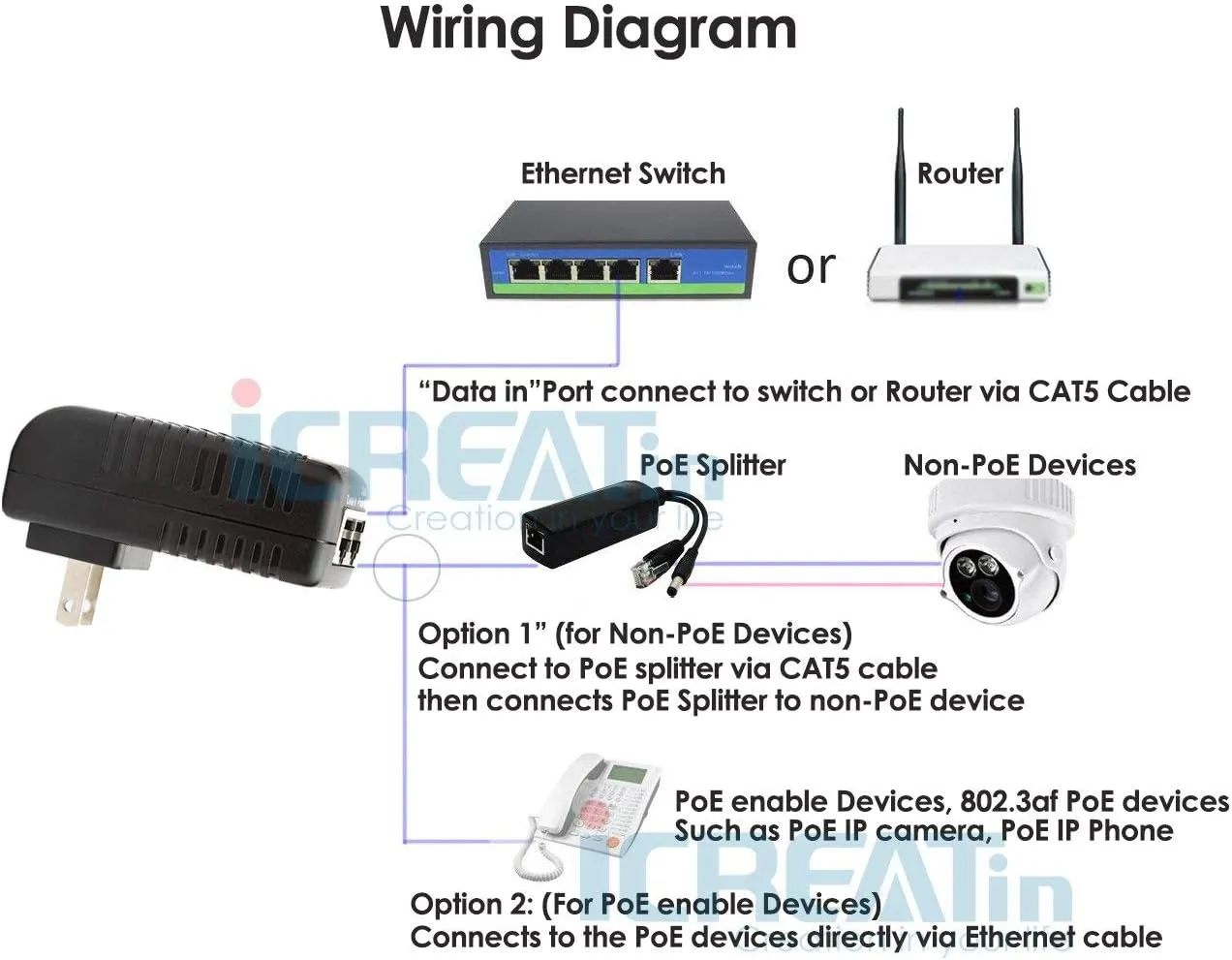

3. Easily connect any POE supported device to a non-PoE LAN switch port.
4. Used to connect a wireless access point, IP phone, network camera, or any POE powered device to a LAN switch.
5. Reduce Wiring Cost by powering devices through your existing Ethernet line rather than running new AC power lines.

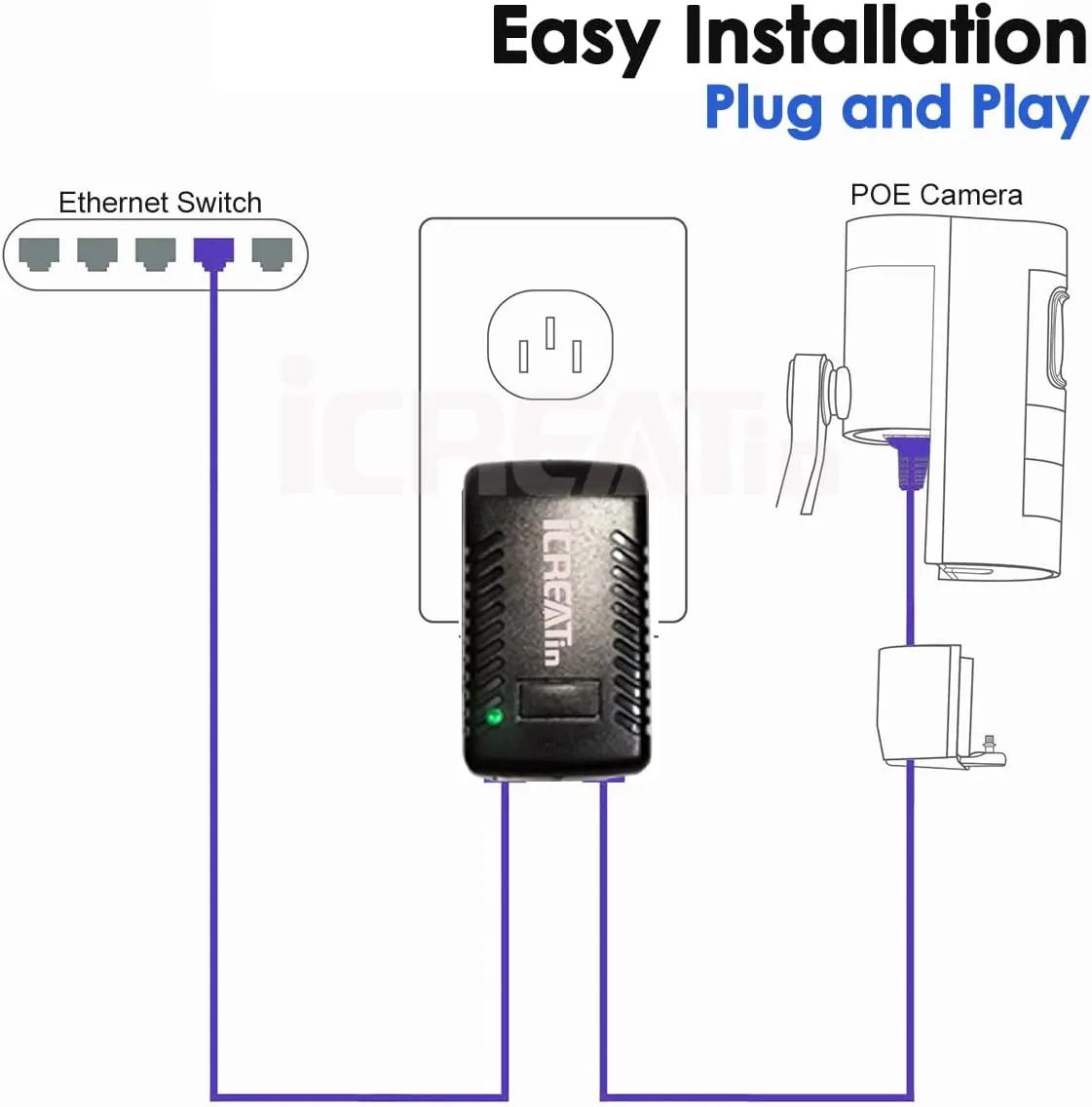

6. You need to do is connect this PoE Injector to the LAN switch port, and then use your existing Ethernet Cable to deliver DC power and data to your device.
7. Protect Your Equipment Now that you are running DC power to your networked equipment through the Cat5 cabling, you need to be sure that your devices are protected from power problems.
8. short circuit , Over Current and Over Voltage Protection, keeping your devices safe. It is also protect your products from overloads over 500mA and high voltages exceeding 50Vdc.
Specifications

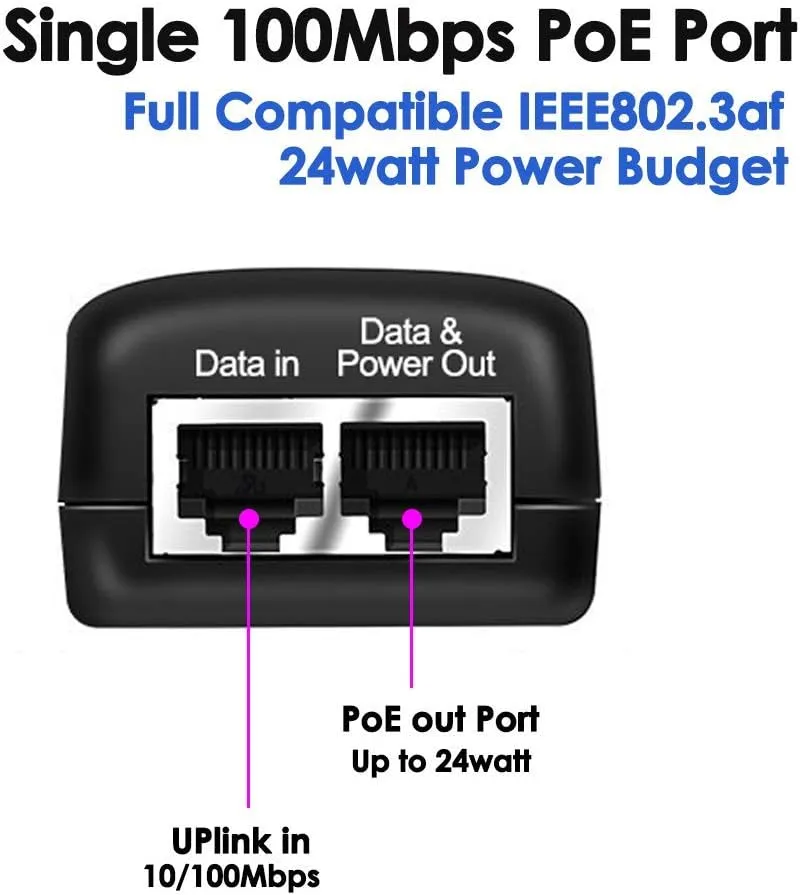

2 RJ45 Shielded Ethernet ports
Input: 100-240VAC 50/60Hz
Output: 48V 0.5A
Power feed Pins: V 4,5; V- 7,8;
Data rate: 10@Mbps

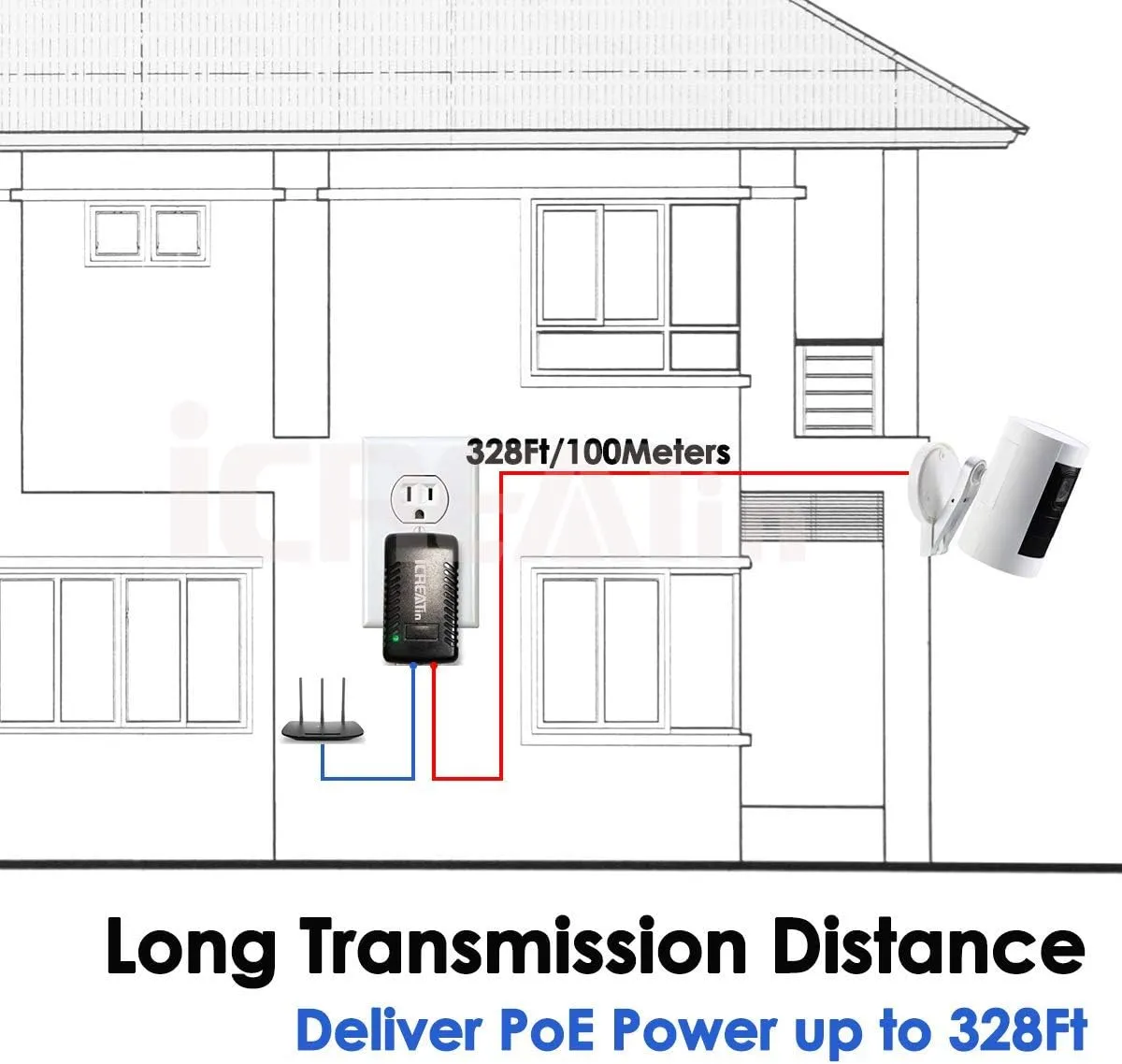

Deliver power up to about 328 feet(100 meters)
What in Box?

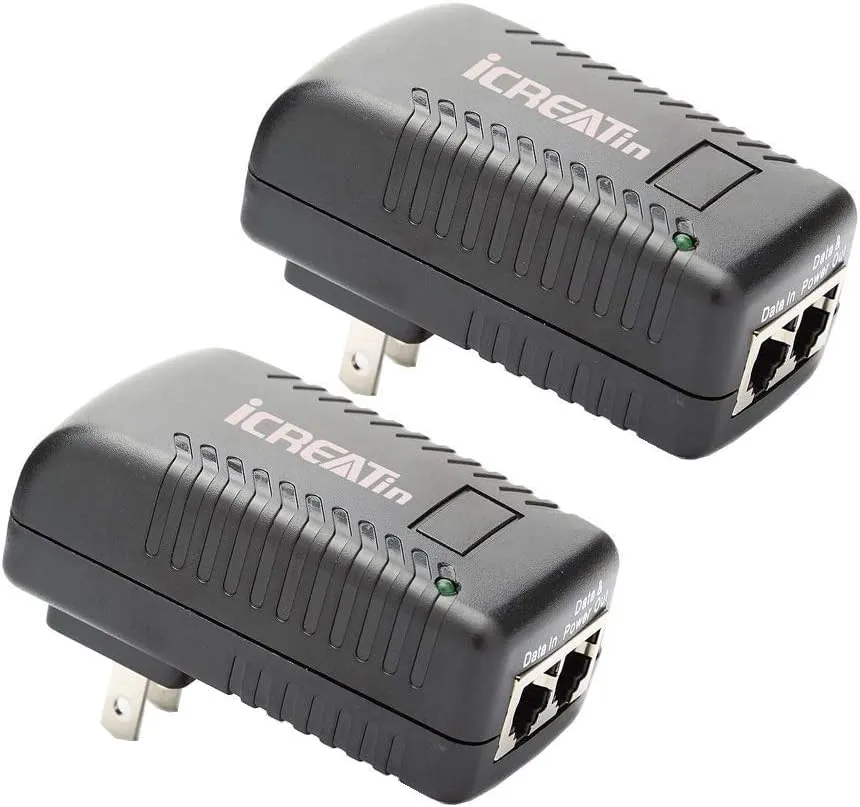

2 x US wallmount PoE injector 48V 24W
