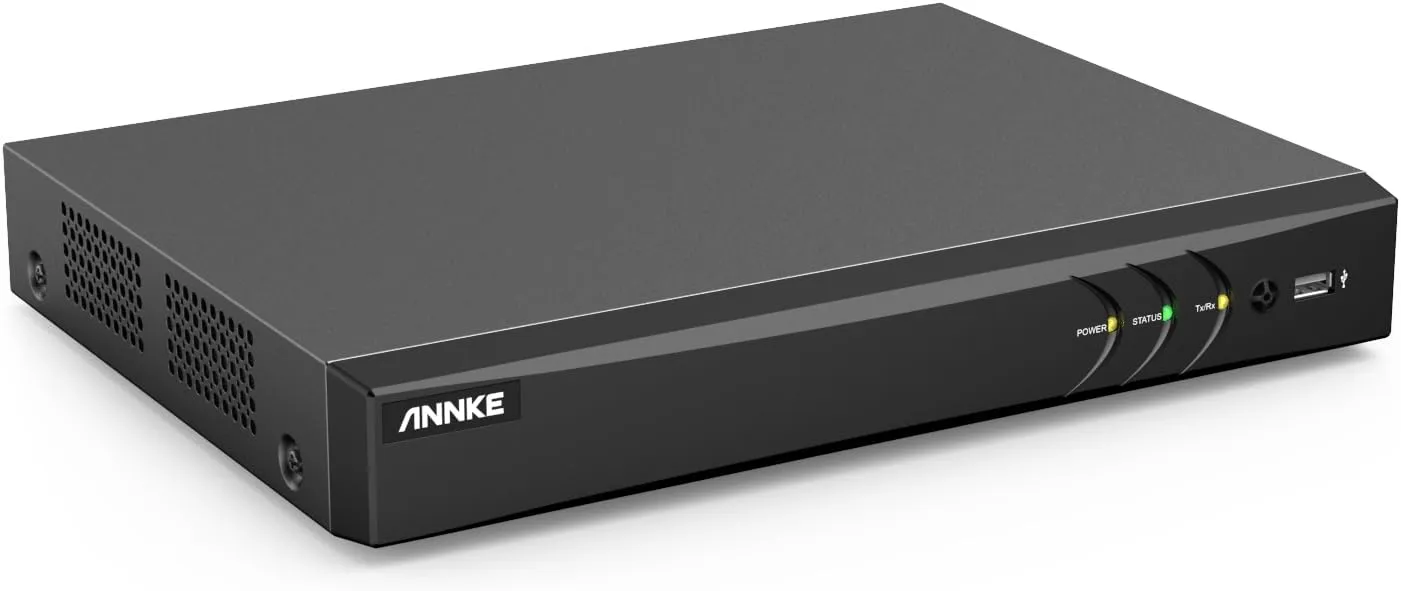

- 8CH 4K DVR: The 4K DVR supports up to 8MP analog wired cameras. Record crisp & clean videos at true 4K resolution (3840 X 2160 pixels)
- AI Motion Detection DVR: Enabling the human & vehicle detection feature to get real time APP push and alerts when motion is detected
- 5-in-1 Hybrid DVR: The digital video recorder supports up to 8pcs TVI/AHD/CVI/CVBS and extra 4 IP cameras. Worry no more for camera signal
- H.265 DVR: Advanced H.265 video compression tech saves up to 80% of storage space compared to H.264 one
- Remote Access DVR: Download ANNKE Vision App to control the DVR via phone, tablet, computer and browser to realize remote access
DVR Specification:
4K(8MP) high definition live viewing
4K(8MP) recording & playback
Deep learning-based motion detection 2.0 for all analog channels
Deep learning-based perimeter protection
Advanced H.265 Video Compression
Audio via coaxial cable
Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1
Supports iPhone、iPad、Android mobile remote monitoring
Video Compression: H.265 Pro /H.265 Pro/H.265/H.264 /H.264
Supported Camera Types: "Support HD TVI Input: 8 MP@15 fps, 5 MP@20 fps, 3K@20 fps, 4 MP@30 fps;
Support AHD Input: 5 MP@20 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps;
Support HD CVI Input: 4 MP@30 fps, 4 MP@25 fps, 1080p@25 fps, 1080p@30 fps;
Support CVBS Input:PAL/NTSC"
Analog HD Playback Resolution: "4K@8 fps/5MP@12 fps/4MP@15 fps/3MP@18 fps 1080p"
IPC Recording Resolution: Up to 8MP
IPC Playback Resolution: Up to 8MP
Max Playback Channel: 8CH
Motion Detection 2.0: Deep learning-based motion detection 2.0 is enabled by default for all analog channels,
it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights.
Smart event: Line crossing & Intrusion Detection
HDD: 1 SATA Interface
HDD Capacity: Up to 10 TB Capacity
